Collecting Statistics

The outcome of a simulation run usually generates various result values. Such results can be simple counters or more complex quantities like for instance average/min/max queuing times.

Results in jasima are usually returned as a set of name/value-pairs contained in a Map. In a SimComponent or SimEntity you can add values to this map in two ways. One is to override the produceResults lifecycle method and add them to the Map passed as an argument. The other way is to call the addResult method at any time during a simulation run.

To collect certain summary statistics like mean/min/max/variance/count of values during a simulation run in an efficient way, the classes SummaryStat and TimeWeightedSummaryStat can be used. But lets look at an example to see how exactly they are used.

For this we look at an extended version of the event-oriented M/M/1 model already used in Event-oriented Simulation. The source code of the example is contained in the class MM1ModelEventsExtendedStatistics, available in package examples.simulation.events of project_template_standalone.

The original version already contained the two counters numServed and numCreated. They were passed back as the result of the simulation by overriding the produceResults lifecycle method of our SimComponent. In this example we will add additional statistics to collect information on

  1. the queuing time of a job (using a SummaryStat object),

  2. the average queue length (using a TimeWeightedSummaryStat object)

  3. the server’s utilization (using a TimeWeightedSummaryStat object).

General Setup

To be able to collect this information, we have to start by introducing a Job class. In the old version, a job was just represented by a number. We are introducing the Job class containing an attribute to store the time when the job entered its queue. Also note that instead of using Integers (the job’s number), our waiting queue q now contains Job objects.

New Job class holding additional attributes.
// Job contains additional job data; here we only add an attribute to record
// record a Job's number and when queuing started
public class Job {
	public int jobId;
	public double startQueuing;
}

The queuing time and queue length/utilization values are collected in objects of type SummaryStat / TimeWeightedSummaryStat.

 // field used for additional stats collection
 private SummaryStat queuingTimes;
 private TimeWeightedSummaryStat queueLength;
 private TimeWeightedSummaryStat serverUtilization;

They are initialized at the end of the init() method:

	// initialize statistics
	numServed = 0;
	numCreated = 0;
	queuingTimes = new SummaryStat();
	queueLength = new TimeWeightedSummaryStat();
	serverUtilization = new TimeWeightedSummaryStat();
}

Queuing Time / Using SummaryStat

To keep track of the queuing time we first have to remember when a job entered the queue. Therefore we first create a Job object in the beginning of the createNext method and record the queuing time start:

void createNext() {
	numCreated++;
	Job j = new Job();
	j.jobId = numCreated;
	j.startQueuing = simTime();

	q.tryPut(j);

Now all we have to do is to calculate a job’s queuing time and call the SummaryStat's value method of our statistics object. The right place to do this is in the checkStartService() method. We add the following lines there:

 // record queuing time
 double queuingTime = simTime() - currentJob.startQueuing;
 queuingTimes.value(queuingTime);

That’s all there is to it, SummaryStat takes care of remembering the number of values encountered, their means, min/max and variance/standard deviation. These summary statistics can be accessed whenever needed by using the methods mean(), min(), max() etc. of SummaryStat. Now all that is left is to add the statistics object to the result map in the produceResults method:

@Override
public void produceResults(Map<String, Object> res) {
	res.put("numCreated", numCreated);
	res.put("numServed", numServed);
	res.put("queuingTime", queuingTimes);
	res.put("queueLength", queueLength);
}

Avg. Queue Length / Using TimeWeightedSummaryStat

TimeWeightedSummaryStat works similar. The main difference is, that we are now using a value-method that has two arguments. The first is the value we are interested in (like the queue length), the second is always the current simulation time. We usually call this method whenever the underlying value changes, closing a time interval starting with the last call of value() and starting a new interval where our underlying quantity has a new value.

To record the average queue length we have to add a call when our queue length increases in the method createNext:

 q.tryPut(j);
 queueLength.value(q.numItems(), simTime());

We have to make another call whenever the queue length decreases in the method checkStartService:

 // take next job from queue
 currentJob = q.tryTake();
 // update queue length statistics
 queueLength.value(q.numItems(), simTime());

As a last step besides adding our statics variables to the simulation results we have to properly close the last time interval. The simplest way of doing this is in the simEnd method. The value passed as the first argument to the value method doesn’t matter in this case:

@Override
public void simEnd() {
	// properly close time-weighted statistis values
	serverUtilization.value(0.0, simTime());
	queueLength.value(0.0, simTime());

Track Server Utilization using TimeWeightedSummaryStat

To keep track of the server utilization we can also use TimeWeightedSummaryStat assuming that a value of 0 means an idle server and 1 means a busy server. The calls to value() should now be towards the end of checkStartService (server is getting busy):

 // update utilization statistics, server is busy now
 serverUtilization.value(1.0, simTime());

The server is getting idle again in the method finishedService:

 // update utilization statistics, server is idle now
 serverUtilization.value(0.0, simTime());

For the server utilization we are also using the second way of adding a result value to the simulation. We can do this by calling the addResult method of each SimComponent or SimEntity.

@Override
public void simEnd() {
	// properly close time-weighted statistis values
	serverUtilization.value(0.0, simTime());
	queueLength.value(0.0, simTime());

	// we can also call addResult() at any time during a simulation run instead of
	// or in addition to overriding produceResults(); this is useful for instance
	// when using process-oriented modelling
	addResult("serverUtilization", serverUtilization);
}

Putting it all together

If we run the example code, the following output should be produced:

Output of MM1ModelEventsExtendedStatistics
********************************************************************************
JASIMA, v3.0.0-RC2-SNAPSHOT (2022-03-28T10:27:55Z, develop@fc0f8a7); https://jasima-simulator.github.io/

SimulationExperiment: exp@2af004b

java: v12.0.1, Java HotSpot(TM) 64-Bit Server VM (Oracle Corporation)
os: Windows 10 (amd64, v10.0)
dir: C:\Users\Torsten.Hildebrandt\eclipse21-09_workspace\jasima-site
********************************************************************************

10:33:23.377	exp@2af004b	INFO	starting...
10:33:23.409	exp@2af004b	INFO	initializing...
10:33:23.409	exp@2af004b	INFO	running...
10:33:23.429	exp@2af004b	INFO	terminating...
10:33:23.429	exp@2af004b	INFO	collecting results...
10:33:23.430	exp@2af004b	INFO	finished.

Results of SimulationExperiment

Name	Mean	Min	Max	StdDev	Count	Sum
queueLength	2.7395	0.0000	17.0000	NaN	1984	2800.4034
queuingTime	2.7183	0.0000	14.1050	2.6697	983	2672.0879
serverUtilization	0.8111	0.0000	1.0000	NaN	1966	829.1237

Name	Value
expAborted	0
numCreated	1000
numServed	982
simTime	1023.158662528794

time needed:	0.1s

As can be seen in the results section, our new statistics queueLength, queuingTime, and serverUtilization are shown in a separate section showing their means/min/max…​ value.

You can also try out a different version of the main method. To do this, comment out the line to run the simulation experiment directly and instead uncoment the three following line wrappeing the simulation experiment in a MultipleReplicationExperiment:

 		// try also using the 3 lines commented out below
 		ConsoleRunner.run(se);
 //		MultipleReplicationExperiment mre = new MultipleReplicationExperiment(se, 100);
 //		mre.addListener(new ExcelSaver());
 //		ConsoleRunner.run(mre);

If you do this, 100 independent replications of the simulation experiment will be performed. The resulting Excel file will list the results of each individual replication on the sheet "sub-exp. value|mean". As can be seen, the M/M/1 model has a high variance. Even for the moderate utilization of 85% the results differ substantially just by changing the random numbers used.

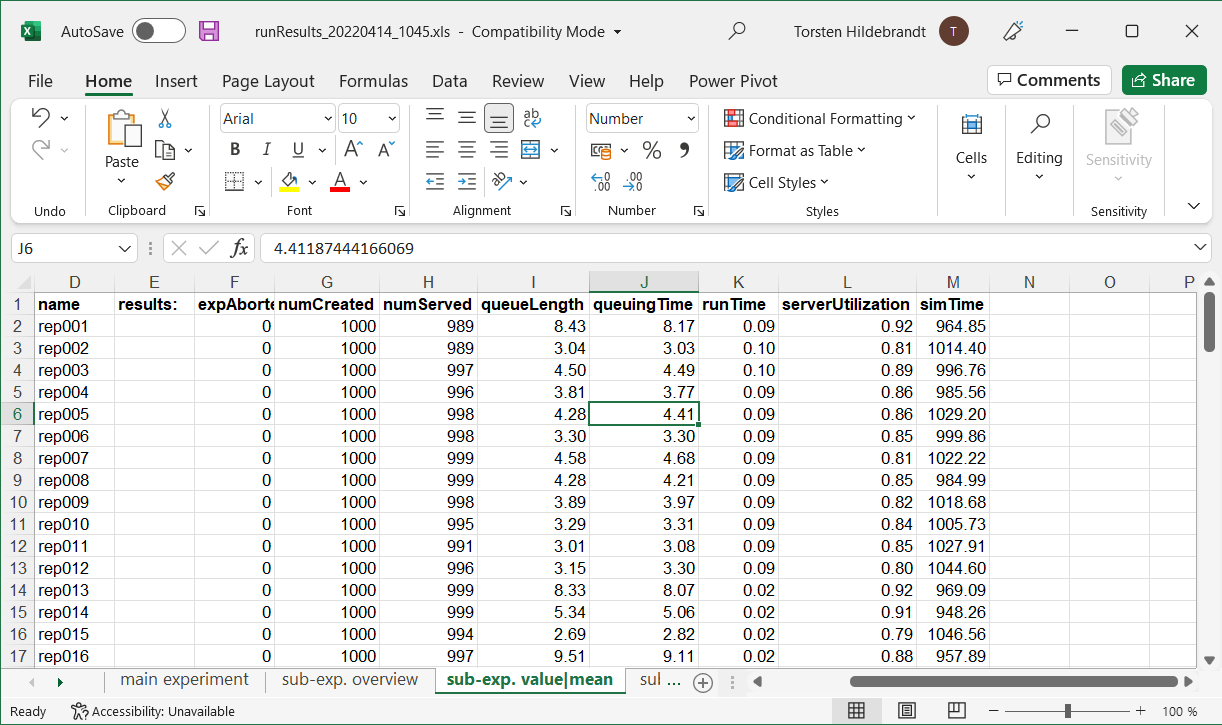

Results of running multiple independent replications
MreExcelResults
